Sener and Receiver IDOC Configurations



Sender IDOC Configuration in SAP PI:


1. Configure sender IDOC Communication Channel (One Sender Channel is enough for one ERP)

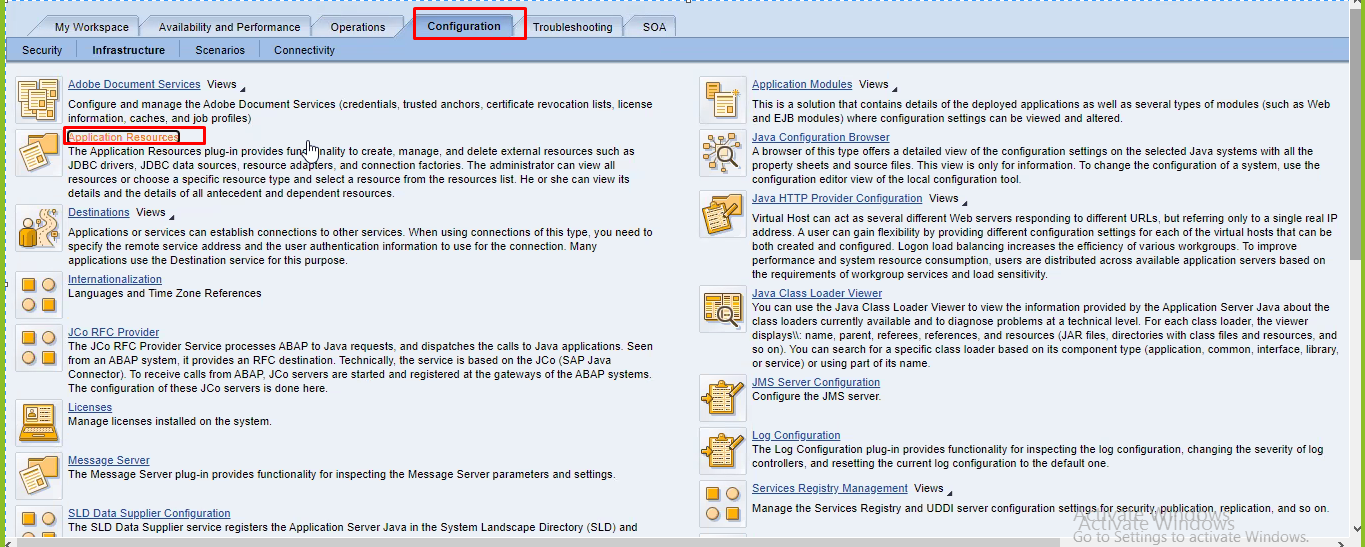

2. Check inbound RA Configuration as below.

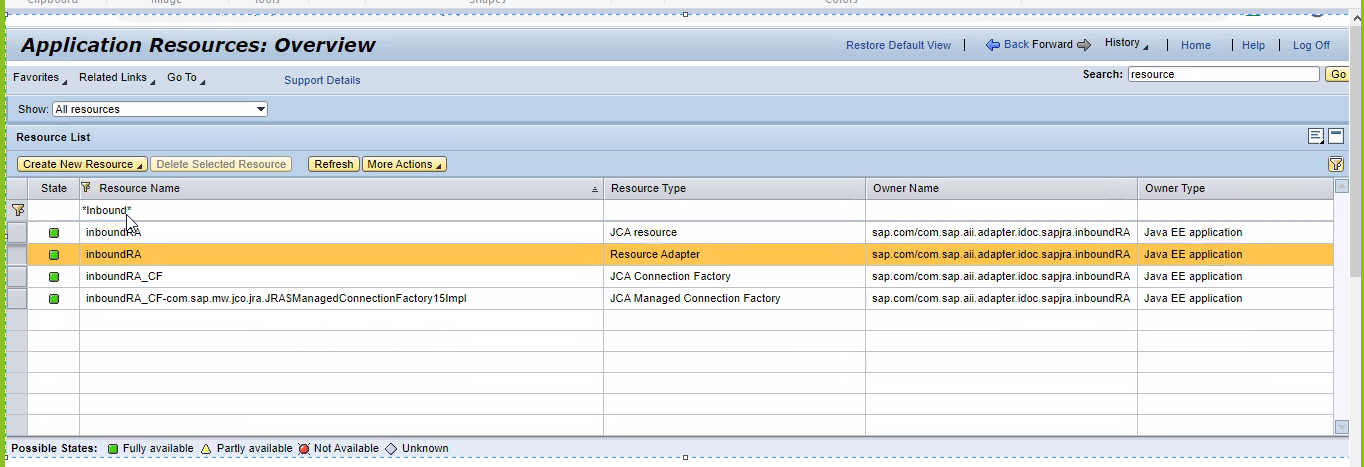

3. Check Properties for inbound RA Resource Adapter for particular ERP


Sender IDOC Configuration ECC:

1. Create/Check Program ID in RFC Destination in R/3

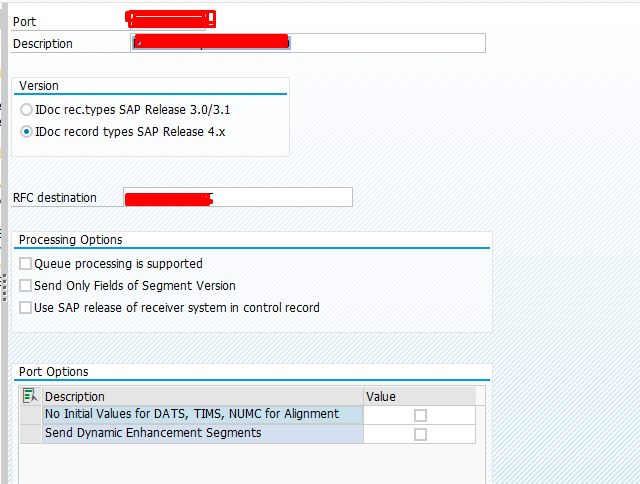

2. Create /Check Partner Port Details in WE21

3. ADD Basic IDOC details for Outbound and Inbound Parameters in WE20


Receiver IDOC Configuration in SAP PI:

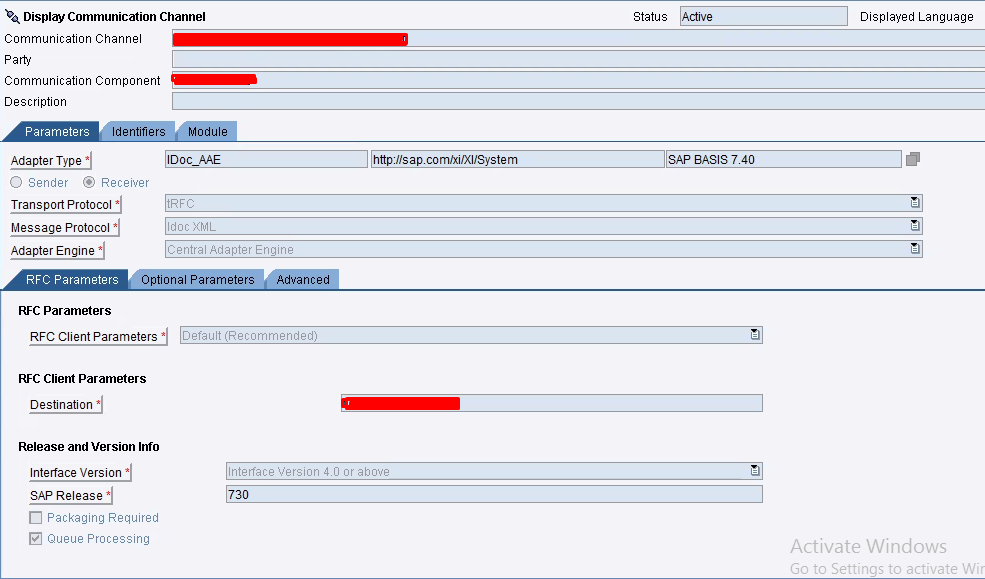

1. Create IDOC Receiver Communication Channel as below.

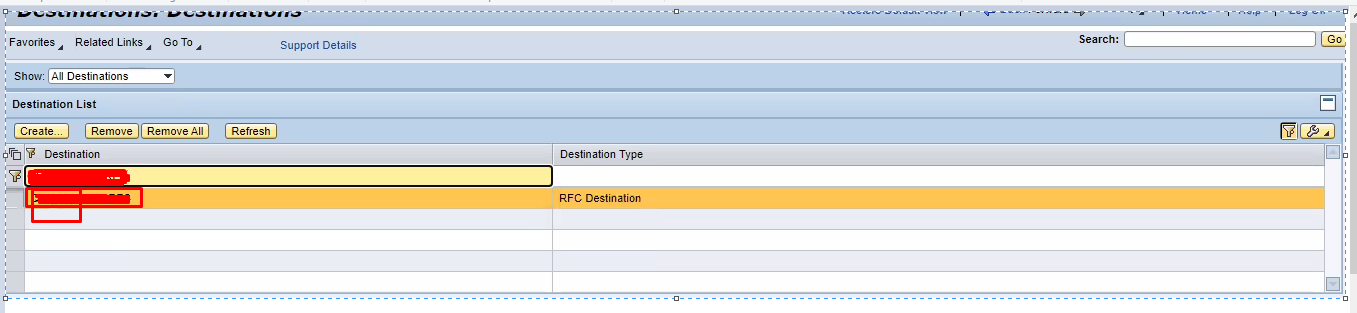

2. Below Created RFC Destination in PI must be maintained in above Communication Channel.


NOTE: Inbound RA is not required for Receiver Configuration


IDOC T CODES ECC

WE02--TO FIND THE LIST OF IDOCS

WE05--TO FIND THE LIST OF IDOCS

WE09-- To search IDOC based on Business Content (Segment, Field Value)

WE19--To Reprocess the Existing IDOC (new IDOC number will generate)

WE20-- Partner Profiles

WE21--port Profiles

SM58-- To reprocess RFC stuck messages in QUEUE

SM59-- TO Create IDOC RFC Destination TYPE T

WE60 -- TO VIEW IDOC DOCUMENTATION

BD54-- LOGICAL SYSTEM (Mostly Created by Functional Team)

BD64- DISTRIBUTION MODEL

BD84-- To reprocess existing IDOC (new IDOC number will not generate)

SM58-- To reprocess RFC stuck messages in QUEUE

SM59-- TO Create IDOC RFC Destination TYPE T



Reference Blog In Detail: https://blogs.sap.com/2012/12/12/how-to-create-and-configure-sender-idoc-aae-scenario-pi-73/
